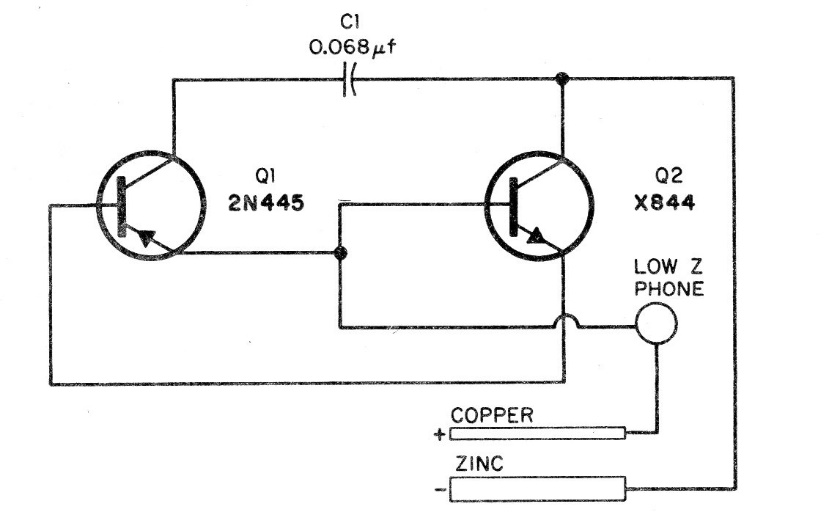

This oscillator works with voltages from 1 V of alternative energy sources, such as a battery of water and salt (chlorox). The circuit is from 1964 documentation and will work better with germanium transistors, but BC548 and BC558 can be tried, which already require a voltage of at least 1.2 V.
| Clique na imagem para ampliar |
