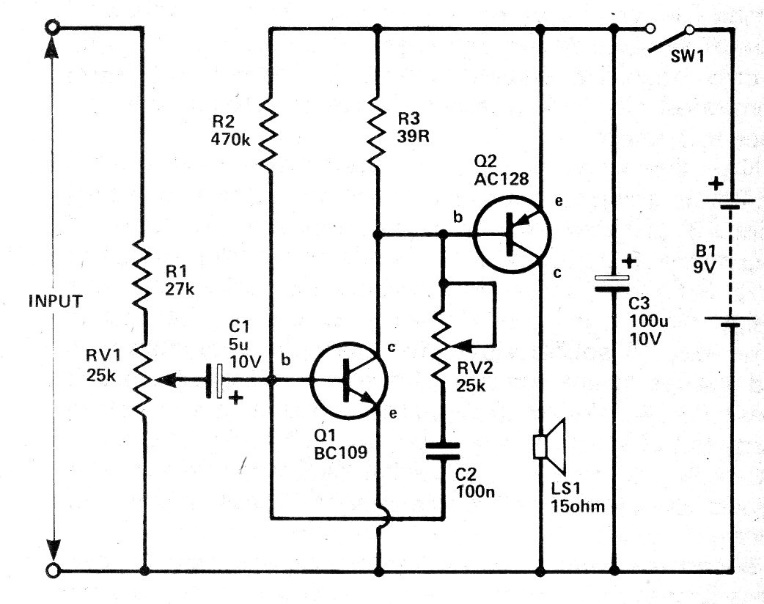

This small experimental amplifier was found in a 1979 documentation. ParaQ1 we can use a BC548 and paraQ2 a BD135. The circuit works with voltages from 6 to 9 V and its power is in the order of a few hundred milliwatts.
| Clique na imagem para ampliar |
