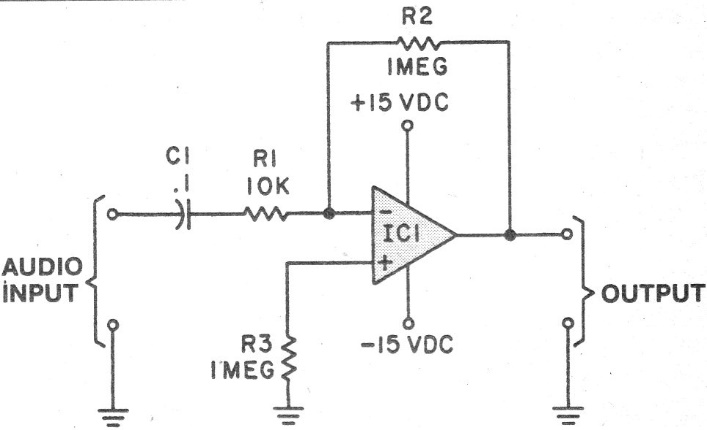

This is the traditional configuration of an inverter amplifier with 100 voltage gain and symmetrical power supply. The gain is given by the relationship between R2 and R1. The circuit is from an 80's documentation.
| Clique na imagem para ampliar |
20 dB amplifier 741 (CB15057E)
- Details
- Written by: Newton C. Braga
