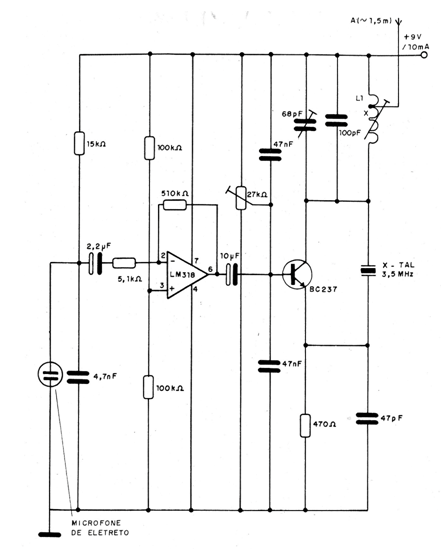

This transmitter operates in the 80-meter range, around 3.5 MHz, with an exact frequency value given by the crystal. L1 consists of 15 turns of wire 28 in a 0.8 cm diameter ferrite rod. The socket on the coil is central. Capacitors must be ceramic except 2.2 uF. The antenna must be 1.5 m.
