Current Control for Phototransistor (CB14639E)

Details
Written by: Newton C. Braga

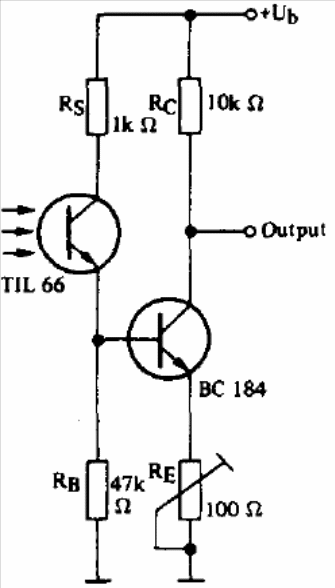

The configuration shown is from a Texas Instruments optoelectronics manual. The circuit can be implemented with any phototransistor and the BC548 can be used for the bipolar. The supply voltage depends on the application.
