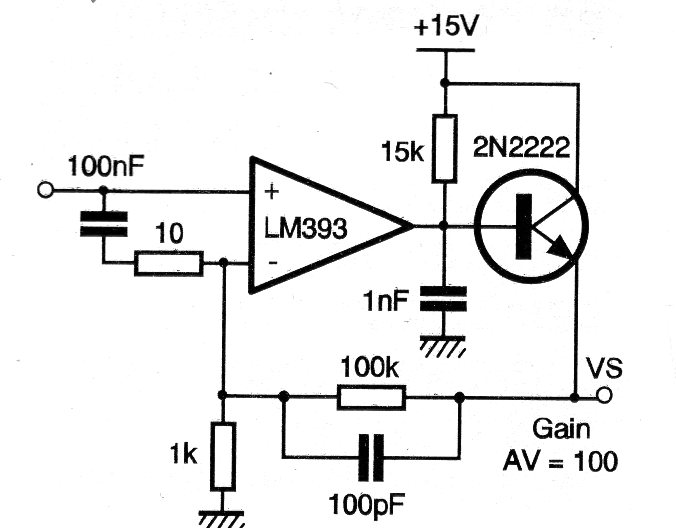

To obtain more output power from an operational amplifier, we can use a transistor, as shown in the figure. In this configuration the gain is 100. We can use other operational ones and the power supply need not be symmetrical.
