TTL Monitor with Surge Alert (CB14431E)

Details
Written by: Newton C. Braga

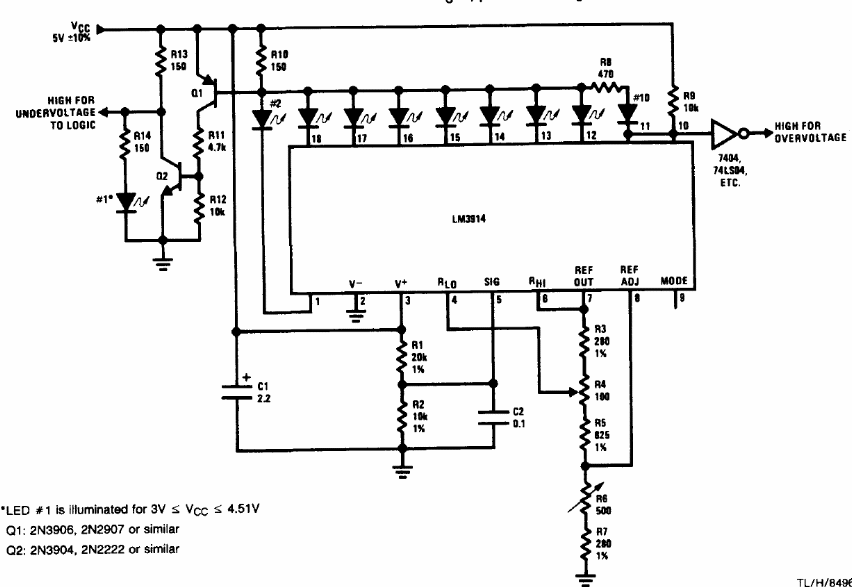

This circuit provides a logic output signal when the voltage exceeds a certain value. The circuit is from the 1994 Linear Applications Handbook by National Semiconductor.
