Simulated Photo Thyristor (CB14657E)

Details
Written by: Newton C. Braga

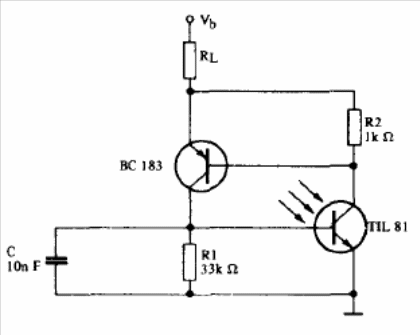

The circuit shown in the figure simulates an SCR with two complementary transistors, one of which is a phototransistor. The bipolar can be the BC558. The circuit is from a Texas Instruments optoelectronics manual.
