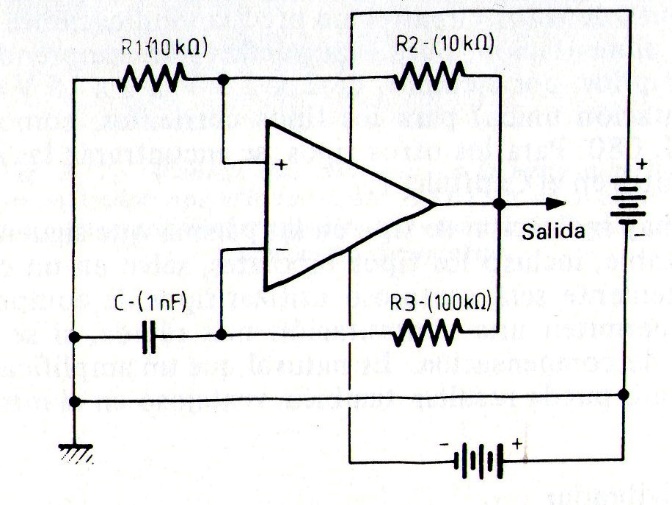

This is the conventional configuration of an astable multivibrator with operational, found in a 1982 documentation. For the indicated components the frequency is in the order of 4.5 kHz. Operational such as CA3140, TL081 and others can be used, and the power will be between 3 and 12 V.
