Low Voltage Indicator (CB14979E)

Details
Written by: Newton C. Braga

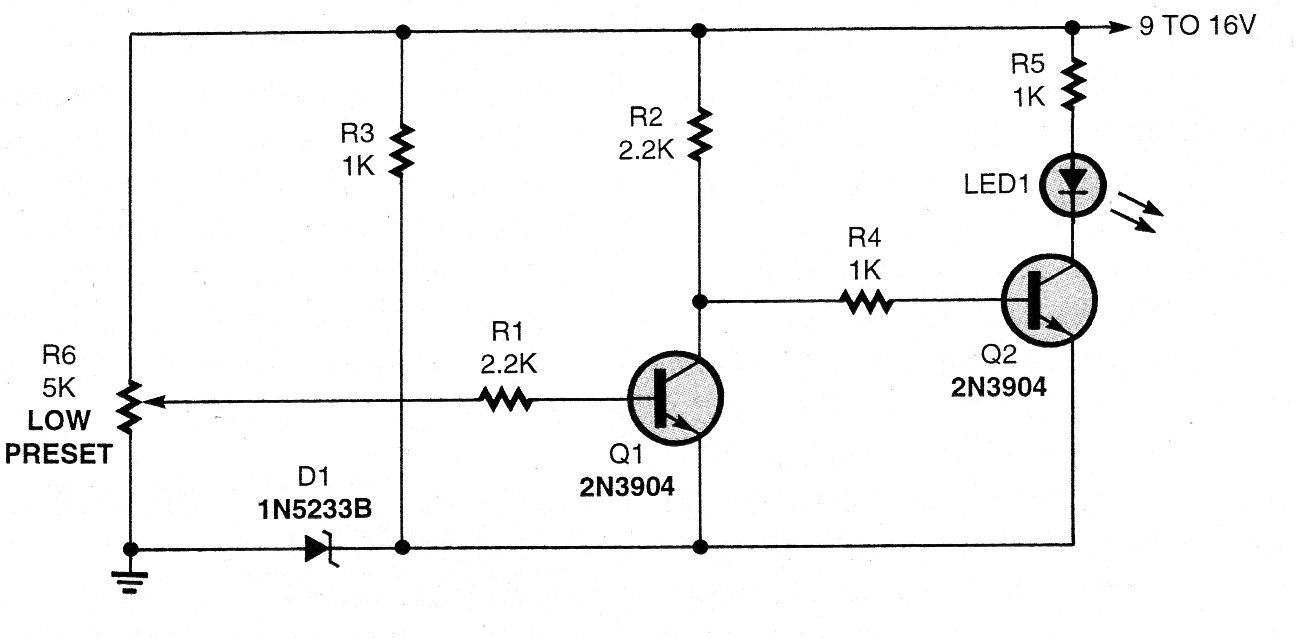

In this circuit the LED lights up when the voltage drops below the value set in the trimpot. The transistors can be the BC548. The circuit is from a 1999 American publication.
