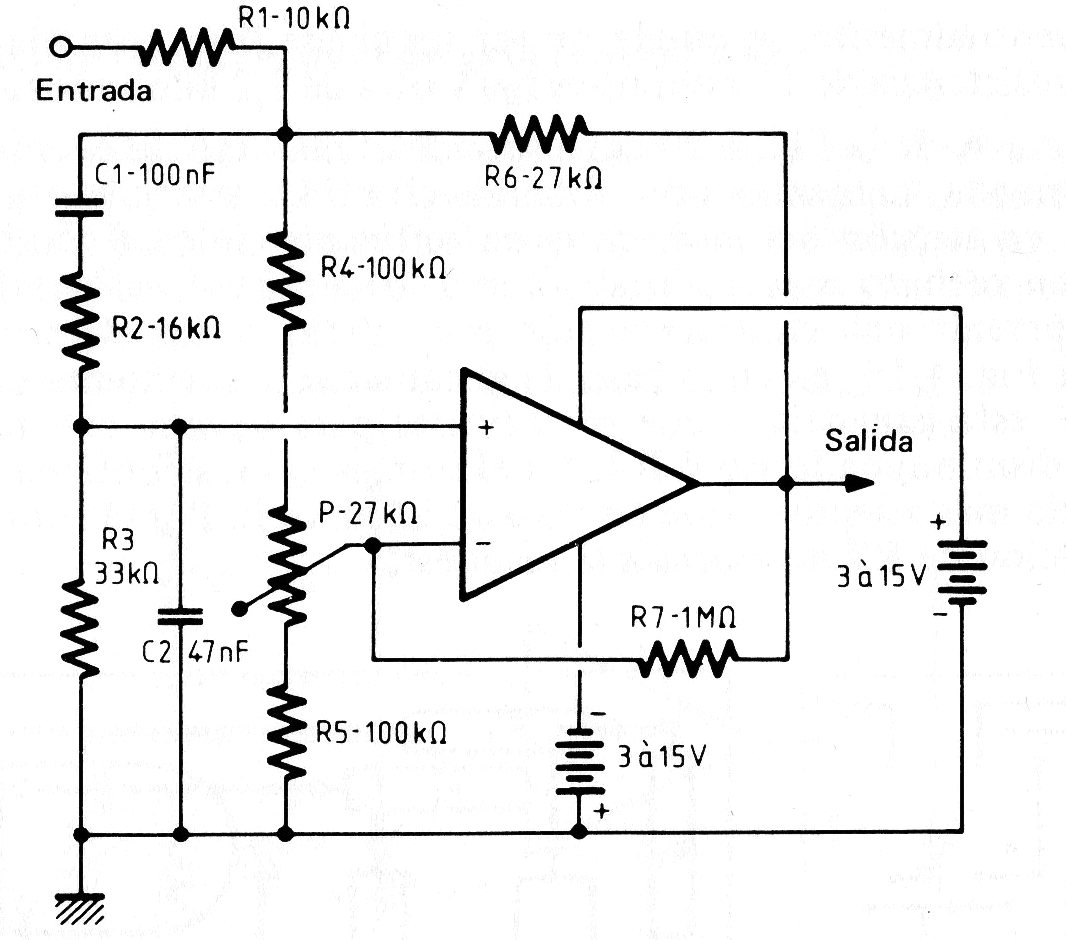

This filter that can use any operational was found in a French documentation from 1982. The power source does not have to be symmetrical and with the components used the frequency is 100 Hz. The potentiometer adjusts the operating point.
