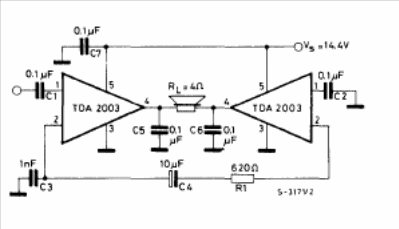

This circuit is from the 1982 SGS linear integrated circuits manual. The integrated circuits must be equipped with heat radiators and the supply of 14.4 V is for automotive use. The output power is 20 W x 4 ohms.
Low cost BTL amplifier TDA2003 (CB15236E)
- Details
- Written by: Newton C. Braga
