Electronic Relay (CB14743E)

Details
Written by: Newton C. Braga

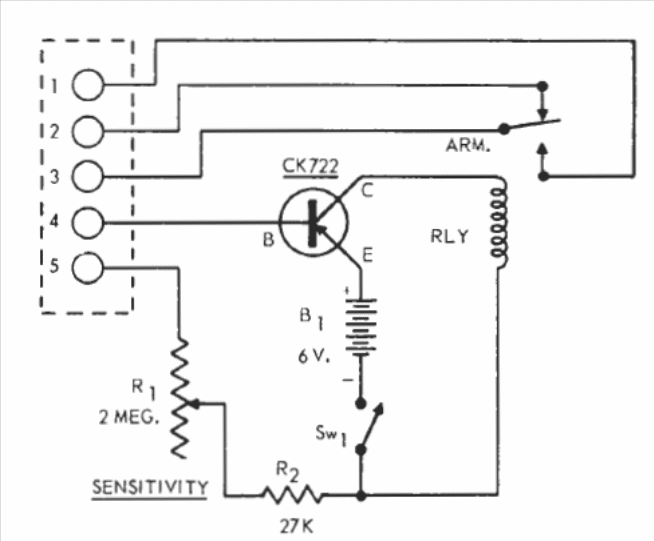

This assembly is from 1957 from a Raytheon manual, but can be modernized using a BC548, 6 V power supply and common 100 mA relays.




| Clique na imagem para ampliar |
