Stereo Decoder TEA5580 (CB15401E)

Details
Written by: Newton C. Braga

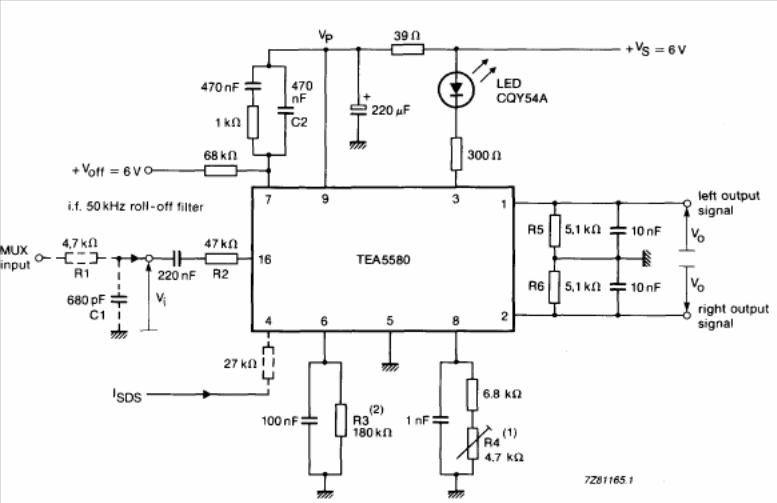

We found this circuit in the 1990 Philips Databook. The circuit is a commercial application of the decoder in stereo FM radio receivers.
