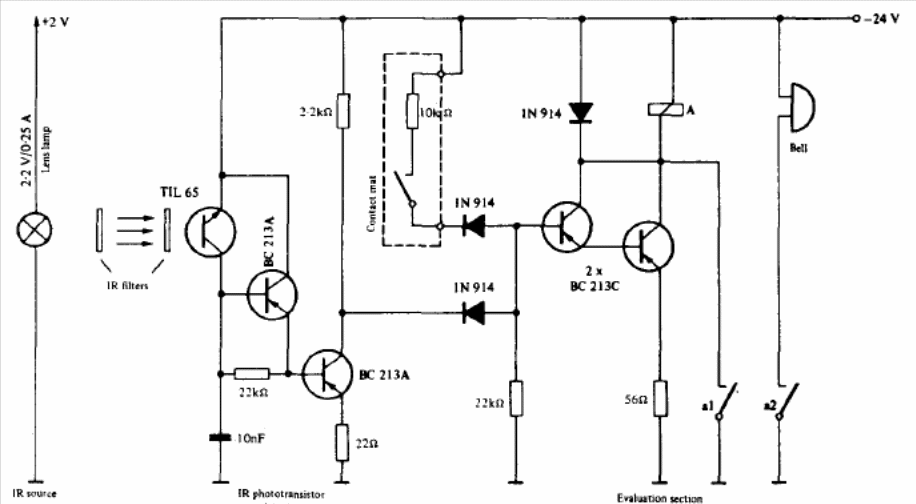

In this circuit of Texas Instruments an incandescent lamp is used as a light source, and lenses are placed to direct the beam over the sensor. The relay depends on the supply voltage and the transistors can be more modern equivalents.
