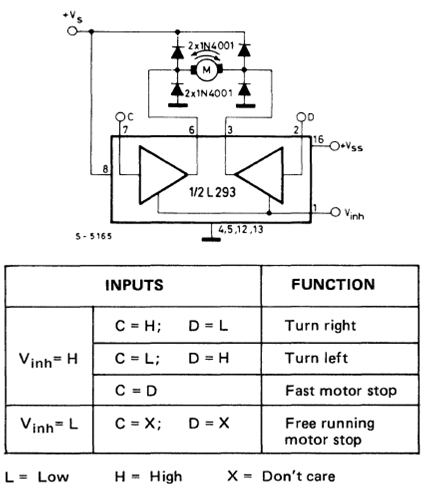

The L293 circuit is not common today. We found this circuit in the 1982 SGS linear integrated circuit manual. The table below shows the motor control mode up to 1.5 A. The circuit can be used as a shield for microcontrollers.
Bidirectional Motor Control L293 (CB15149E)
- Details
- Written by: Newton C. Braga
