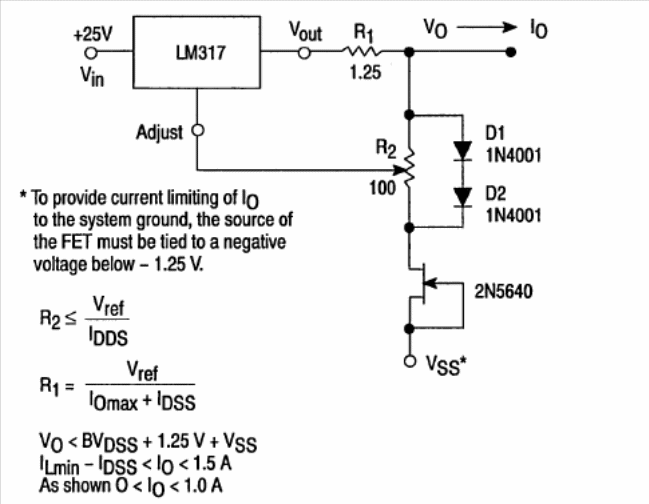

The maximum current of this circuit is 1.5 A. The circuit has the formulas next to the diagram to calculate the components according to the application. We found this circuit on Motorola's 1993 Linear Interface ICs.
| Clique na imagem para ampliar |
Adjustable Current Limiter LM317 (CB15314E)
- Details
- Written by: Newton C. Braga
