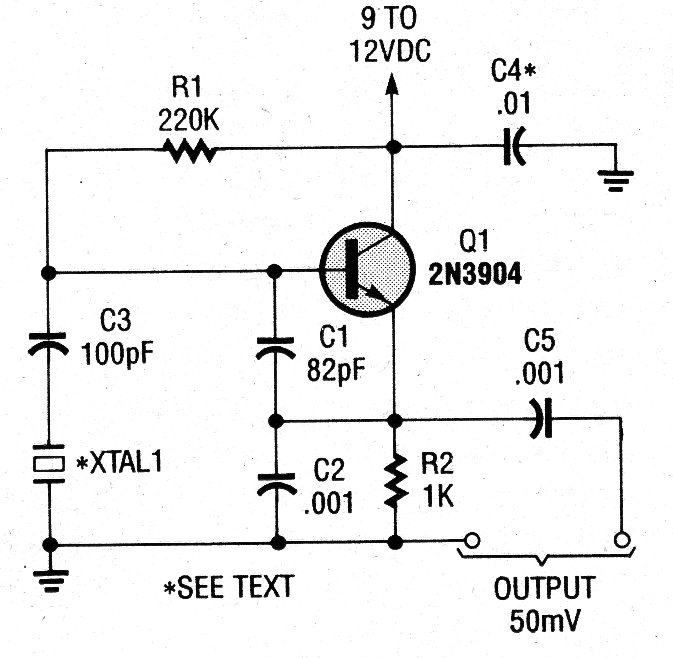

This common crystal oscillator configuration can generate signals from 1 to 20 MHz, depending on the crystal used. The transistor can also be the BC548. We found this circuit in an American documentation from the 90s.
