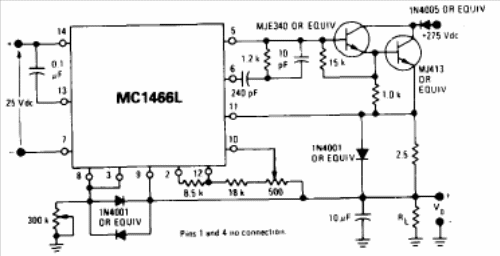

0 to 25 V x 100 mA Regulator MC1466L (CB14521E)

Details
Written by: Newton C. Braga



This circuit, which uses an unusual integrated, is from the Motorola Linear Databook of 1990. Transistors admit equivalents.
