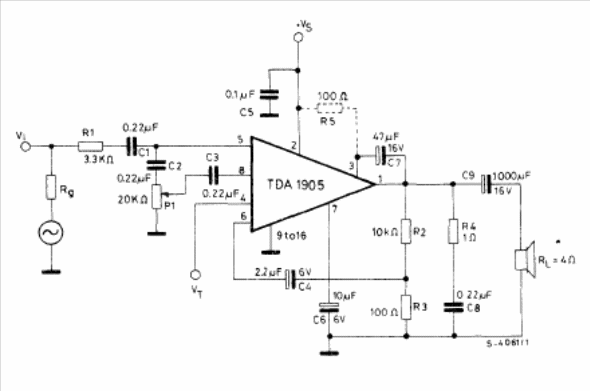

The integrated circuit used in this amplifier is not common today. The power can be between 4 and 14 V. The output power depends on the voltage and the load impedance. The circuit is from the 1982 SGS Linear Integrated Circuits Manual.
5 W Amplifier with Muting TDA 1905 (CB15221E)
- Details
- Written by: Newton C. Braga
