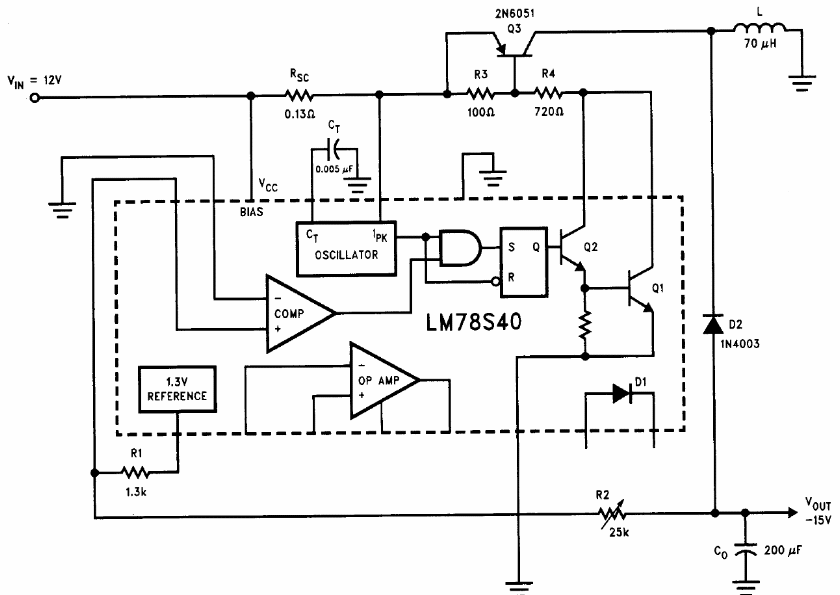

Inverter Regulator -15 V with 1.5 A LM78S40 (CB14407E)

We found this circuit in the Linear Applications Hanbook of the National Semiconductor in 1994. The semiconductors used are not very common today.

| Clique na imagem para ampliar |
