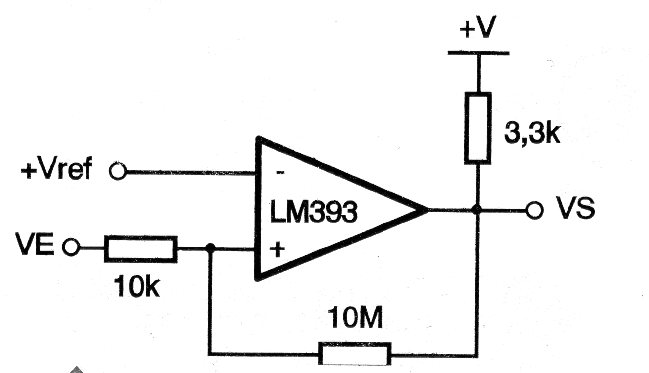

In the figure we have the way to add hysteresis to an operational amplifier. The relationship between the 10M and 10k resistors determines the gain. The power supply must be symmetrical.
| Clique na imagem para ampliar |
Operational with Hysteresis LM309 (CB15103E)
