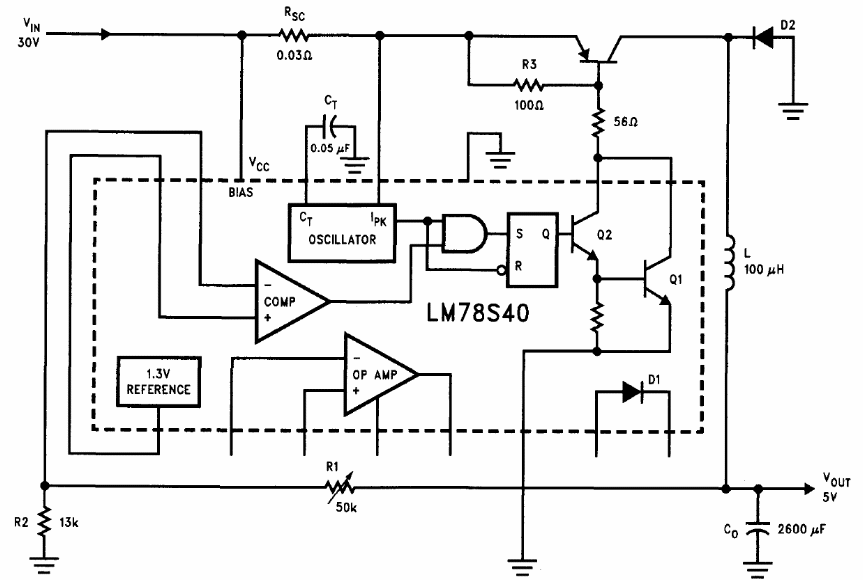

The circuit is from the 1994 National Semiconductor Linear Applications Handbook. The component used is not common and the transistor can be a 2N2955 or equivalent of at least 5 A of collector current.
| Clique na imagem para ampliar |
5V x 5 A Step-Down Regulator LM78S40 (CB14406E)
- Details
- Written by: Newton C. Braga
