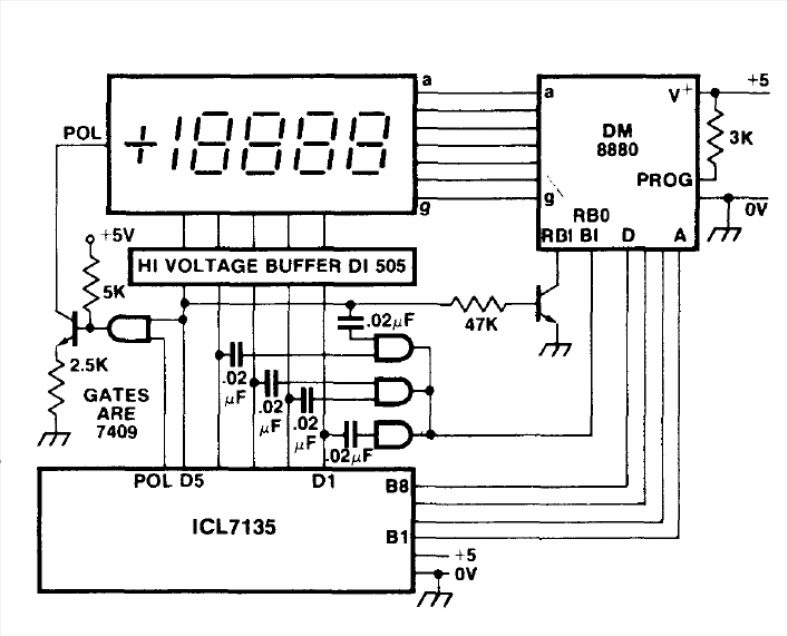

This circuit is from the 1983 Intersil Databook. The display is plasma and must be excited by a high voltage circuit. The components used in this configuration are not common today.
| Clique na imagem para ampliar |
ICL7135 Plasma Display Circuit (CB15362E)
- Details
- Written by: Newton C. Braga
