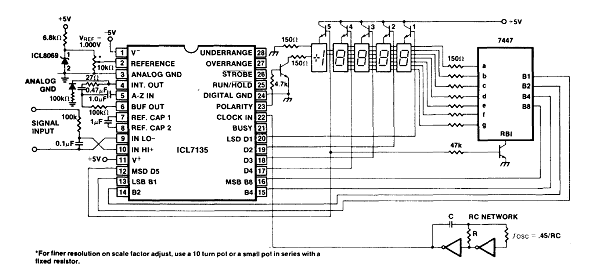

This circuit is from the 1983 Intersil Databook. In it we have the use of the ICL7135 as an AD converter for a 4 and a half digits multiplexed display. The circuit can be found in many commercial instruments.
4 and a half digits display with ICL7135 (CB15361E)
