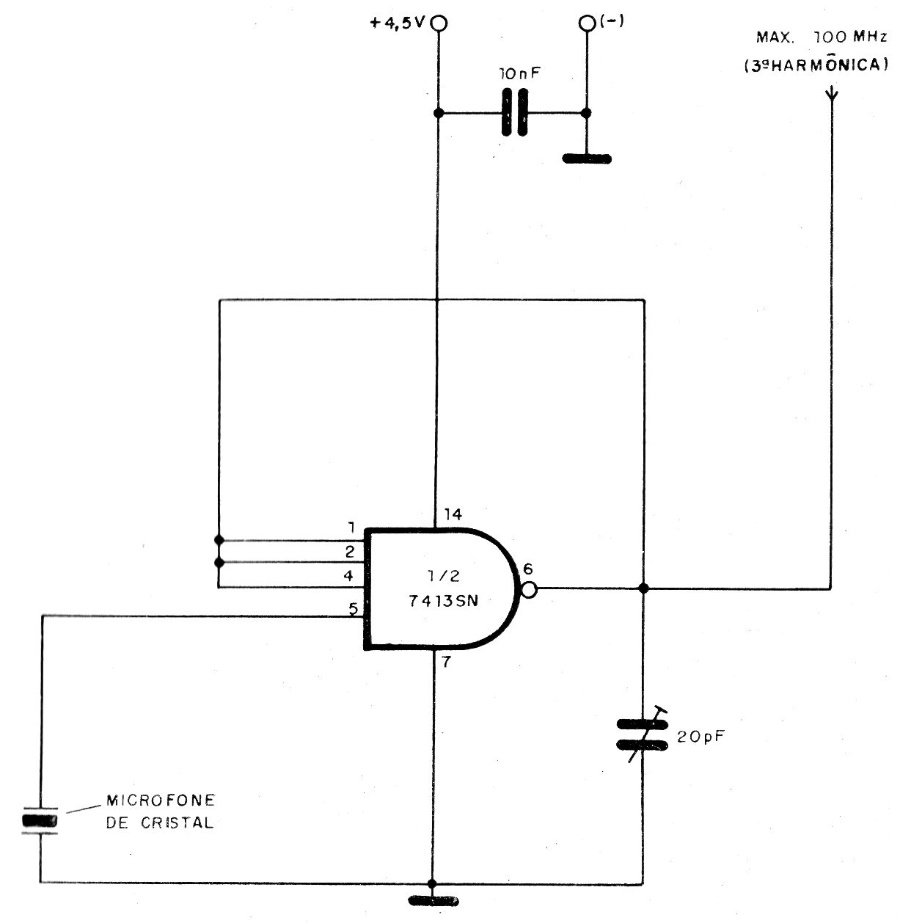

This circuit sends its signals to short wave receivers and even FM outside stations placed nearby. As its range is very small, it serves for demonstrations and for listening through walls. The supply must be made with voltages of 4.5 to 5 V.
