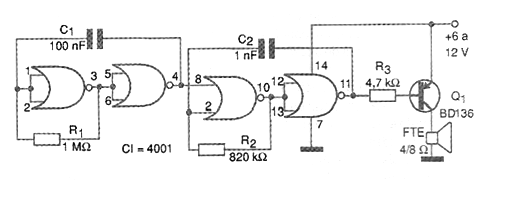

A modulated (intermittent) siren, using the four gates of integrated circuit 4001 is shown in figure 1. The power stage can use a single transistor, as in the case of the previous circuit, or a higher power circuit, such as the one already shown in CB15444E. The modulation and tone frequencies can be changed by modifying both the resistors and the corresponding capacitors
