Digital Bargraph Indicator (CB14703E)

Details: Written by: Newton C. Braga

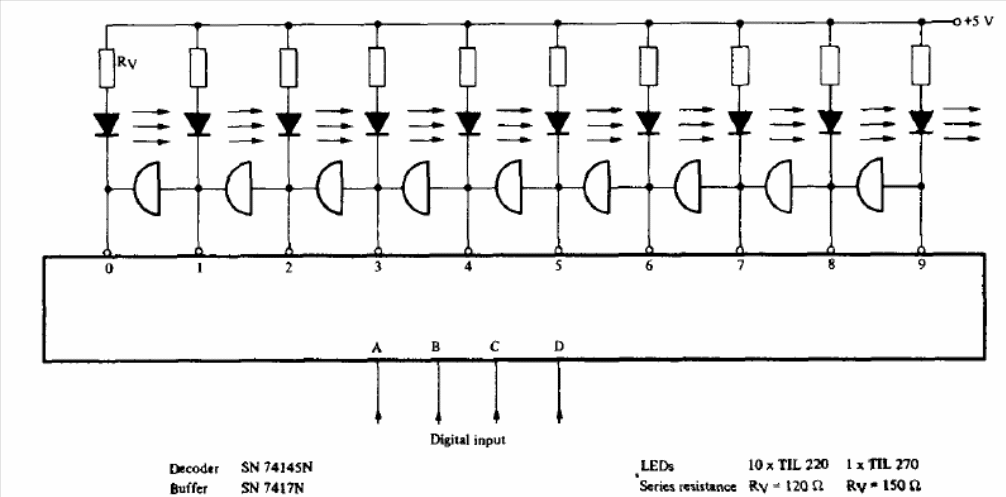

This circuit indicates a digital value through a moving bar. The circuit is TTL and must be powered by 5 V. We find this circuit in a Texas Instruments optoelectronics manual.
