Automatic Headlight Shutdown (CB15100E)

Details
Written by: Newton C. Braga

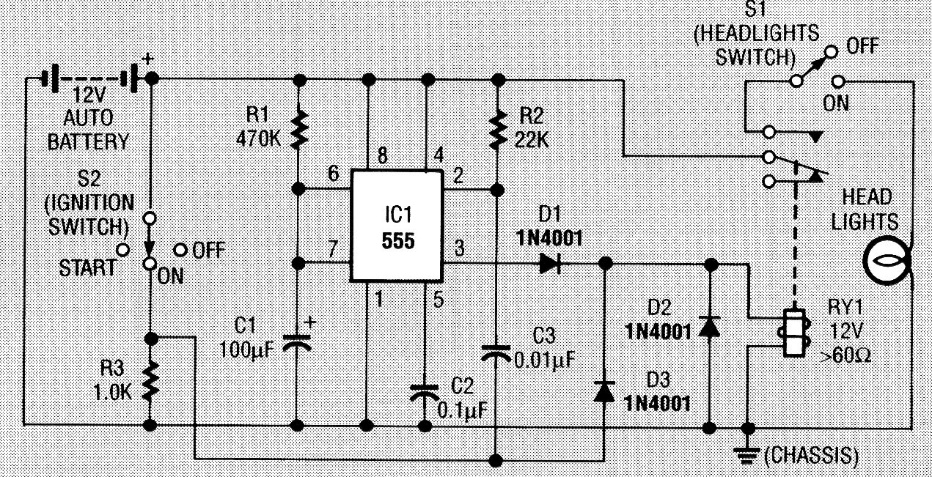

Poptronics recommends this circuit for use in the car when the headlights are left on. The circuit uses a sensitive relay with contact current according to the headlights.




| Clique na imagem para ampliar |
