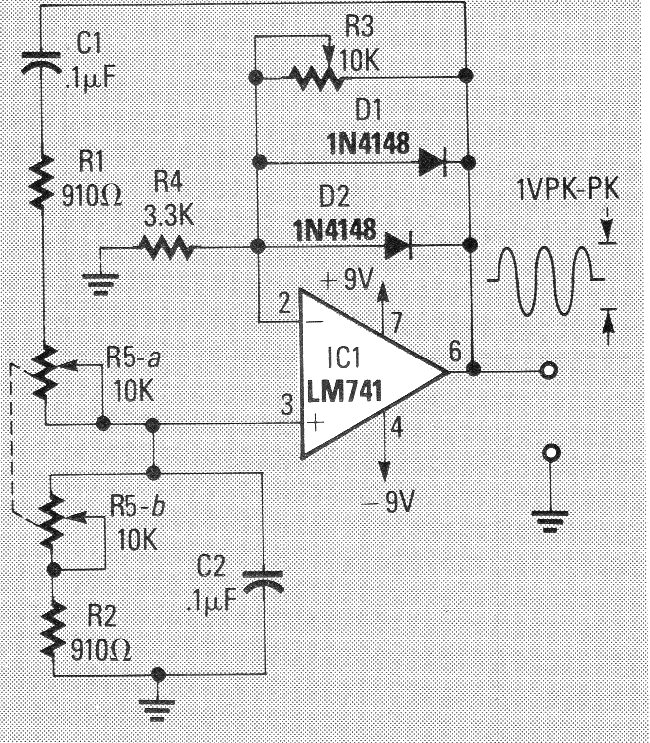

We found this configuration in a Radio Electronics from 1989. The circuit can be designed with other operational amplifiers generating a sinusoidal signal centered at 1 kHz with the indicated components. The power supply must be symmetrical.
