Meter ICL7117 For Bridge (CB15359E)

Details
Written by: Newton C. Braga

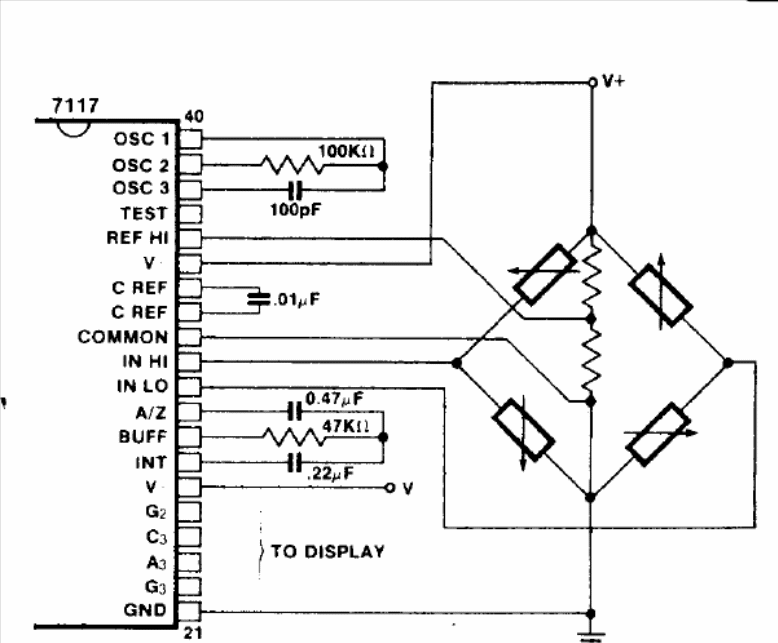

This circuit is from the 1983 Intersil Databook. The circuit has an A / D converter for display of 4 and a half digits being powered by a voltage of 9 V.
