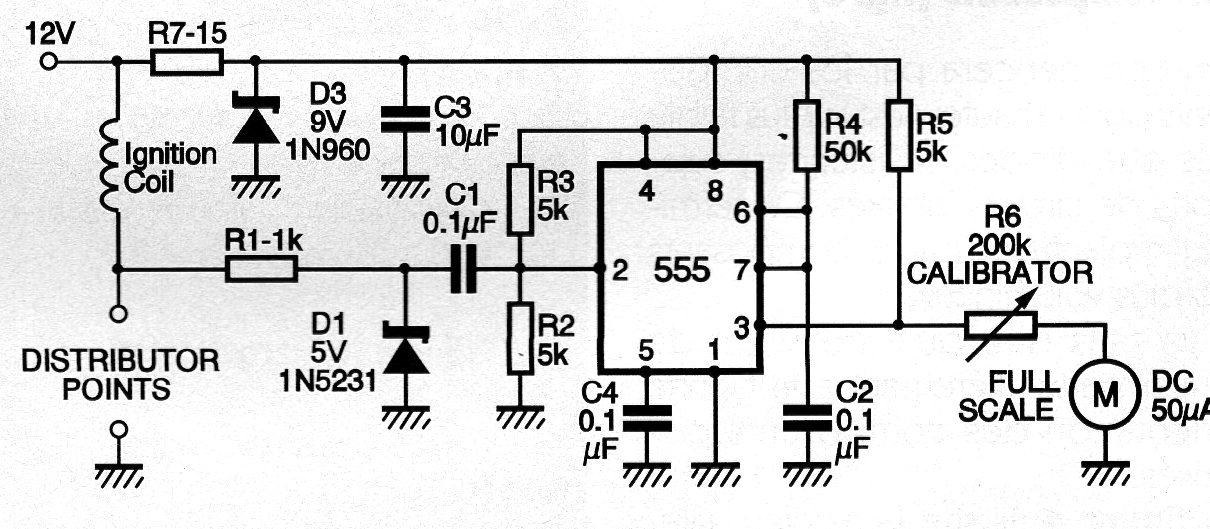

This analog tachometer can be used in cars with platinum or in robotic and automation applications to measure the rotation of a mechanical part, with changes in the values of the components, specifically C2 and R4. The circuit can use the lowest scale of a milliammeter. We found this configuration in a Signetics manual.
