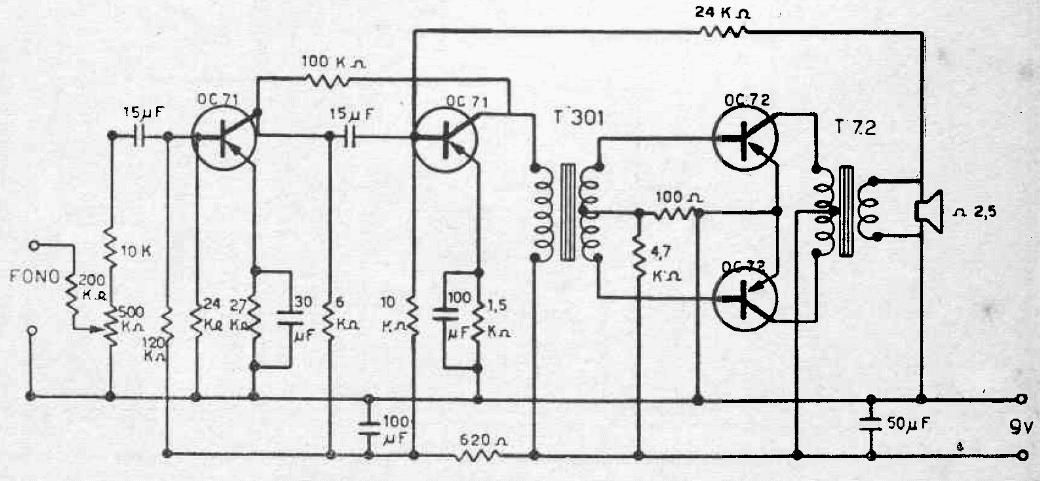

This circuit is from an old Italian publication, being used in record players with crystal capsules and 9 V power. The critical components are transformers that can be obtained from old radios or old amplifiers that are not in use.
