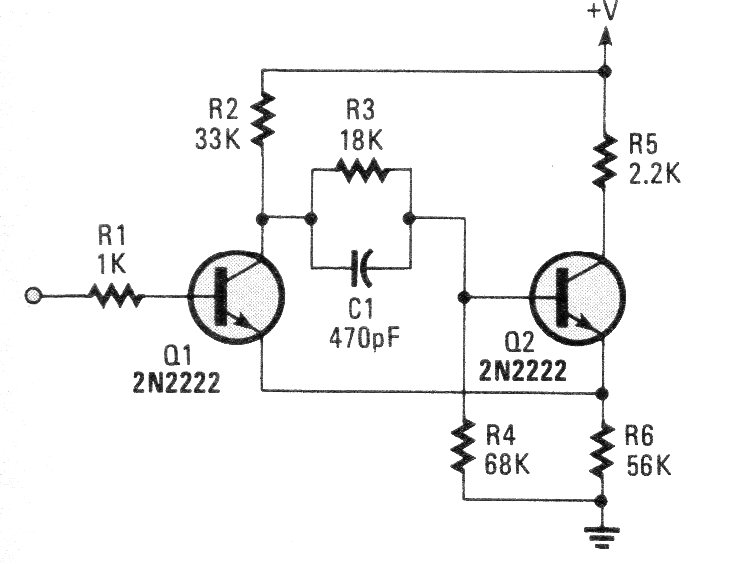

This circuit was found in an 80's Poptronics. The circuit is a fast trigger whose signal can be taken from the Q2 collector. The supply can be done with voltages from 9 to 12 V.
| Clique na imagem para ampliar |
Schmitt Trigger (CB14993E)
- Details
- Written by: Newton C. Braga
