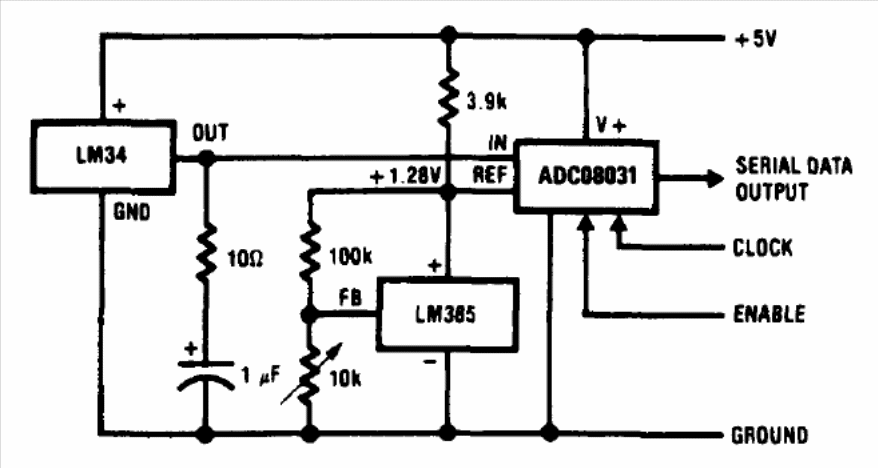

This circuit provides a digital output on the Fahrenheit scale with a maximum value of 128º F using the LM34, which is not a simple component to obtain, just like the other semiconductor devices. The circuit is from 1994 National Semiconductor technical documentation.
| Clique na imagem para ampliar |
