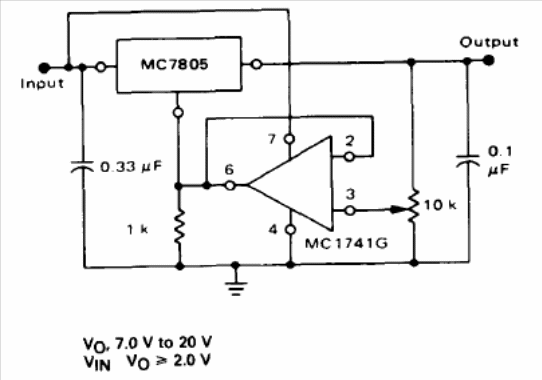

The 78xx series is manufactured by several semiconductor companies that present ideas for use in their manuals. The circuit shown in the figure is from Motorola's 1990 Linear Databook. The operational amplifier is the 741.
Adjustable Regulator from 7 to 20 V with the 7805 (CB14532E)
- Details
- Written by: Newton C. Braga
