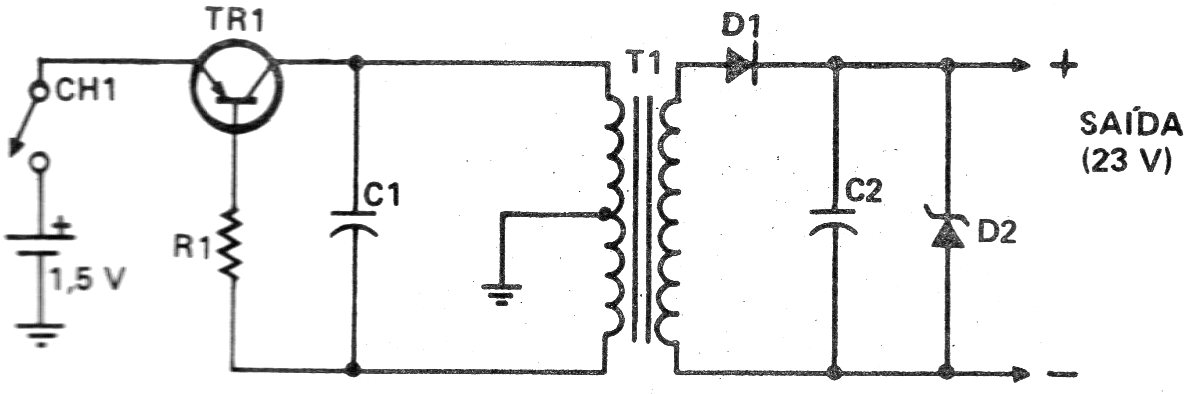

Old multimeters used a 22.5 V battery for high resistance measurements. If you have one, you probably will not find the replacement battery, but that does not stop you from using it with the source given below. The critical component is the transformer that can be used from an old radio.
