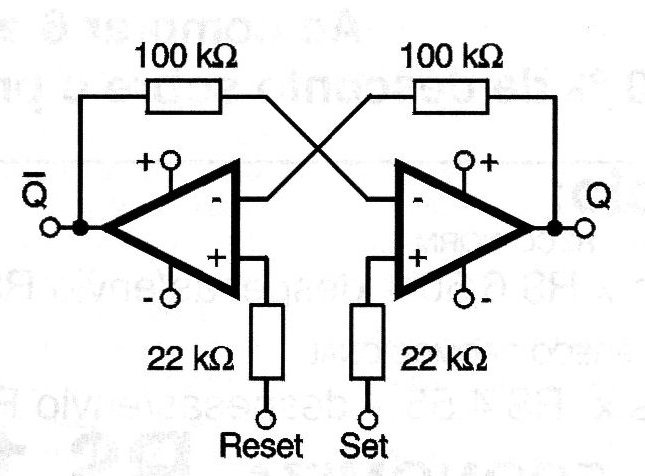

With two operational amplifiers it is possible to make a flip-flop type R-S (Reset-Set), as shown in this application. Operational amplifiers can be of any type, such as the traditional 741 and the power supply must be symmetrical.
