8086 (CB16012E)

Details
Written by: Newton C. Braga

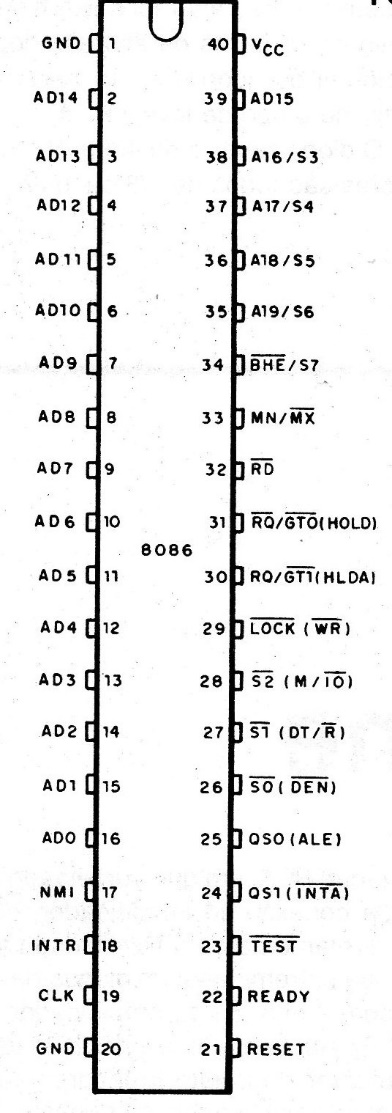

In the figure we pin the 8086, Intel's 16-bit microprocessor. It is manufactured according to H-MOS technology, which allows operation with 8MH2 clock. The 8086 chip contains 29,000 transistors in a 40-pin DIL package, as shown in the figure.
