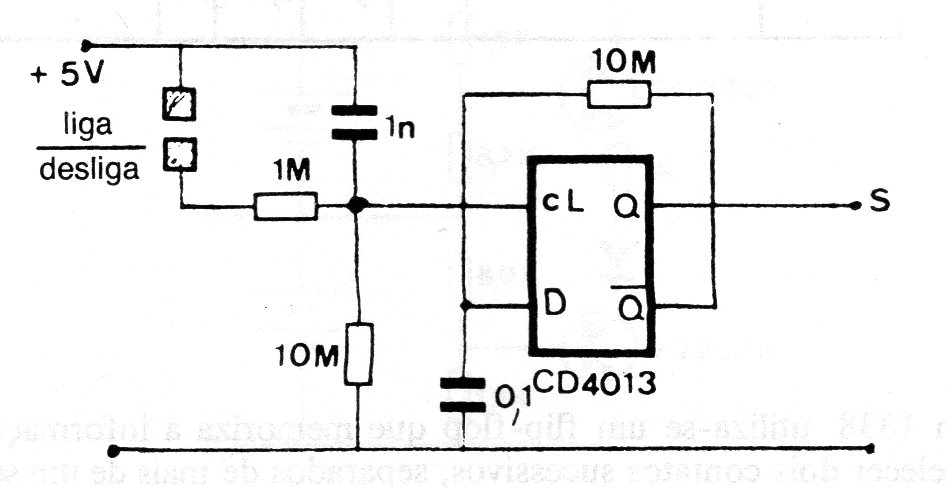

This 4013 bistable has only a touch sensor that turns the controlled load on and off at its output. The circuit can be used as a control or input shield when powered by a voltage of 5 V. The circuit is from French documentation from the 70s.
