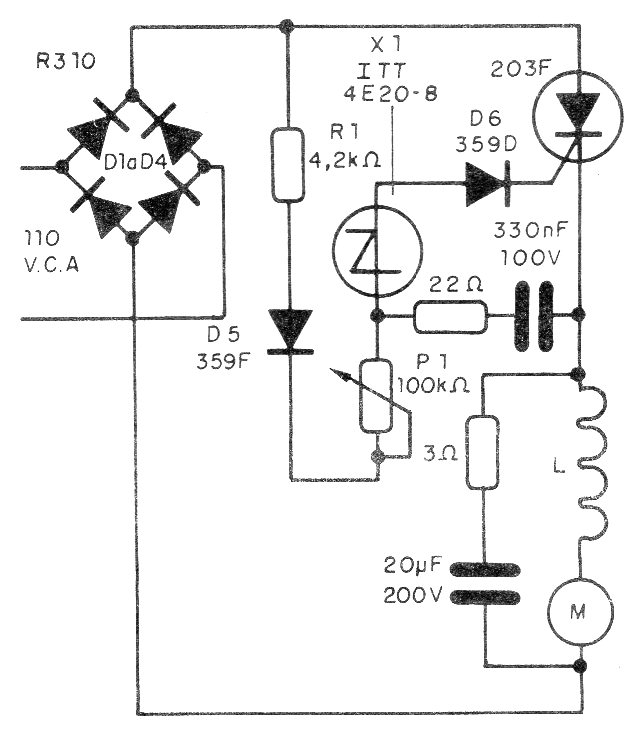

This full wave configuration using SCR was found in a 1992 documentation. The SCR must be equipped with a heat sink and the source diodes must withstand the motor current. The circuit uses a SUS.
| Clique na imagem para ampliar |
Universal Motor Control (CB16697E)
- Details
- Written by: Newton C. Braga
