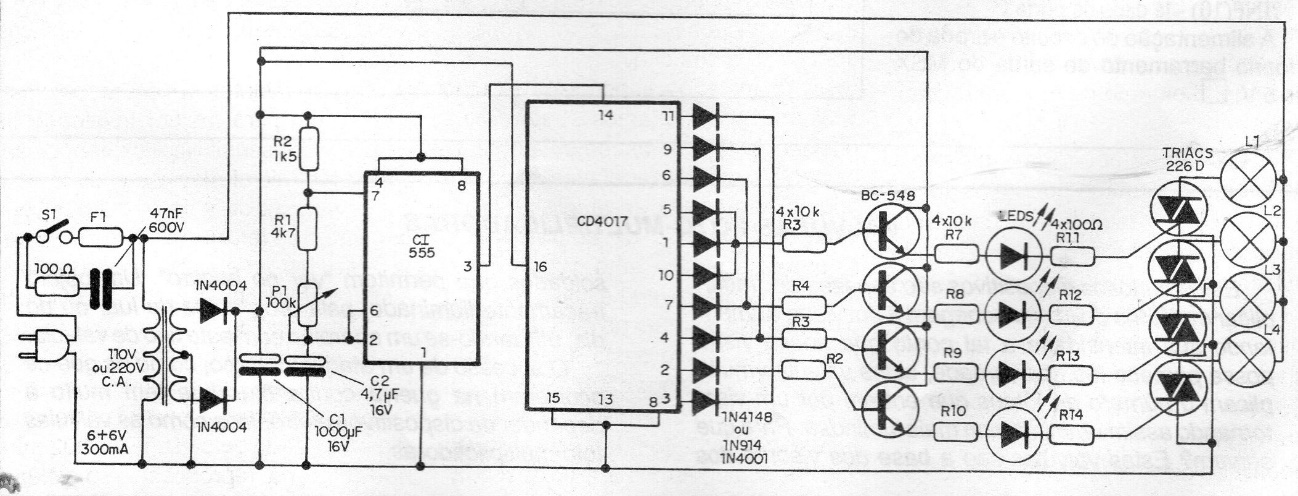

This conventional sequential circuit with triacs is only for incandescent lamps. The circuit is from 1992, but it can be easily assembled today, as all components are common. The triacs must be equipped with heat sinks and the circuit works on both the 110 V and 220 V mains with appropriate components.
| Clique na imagem para ampliar |
