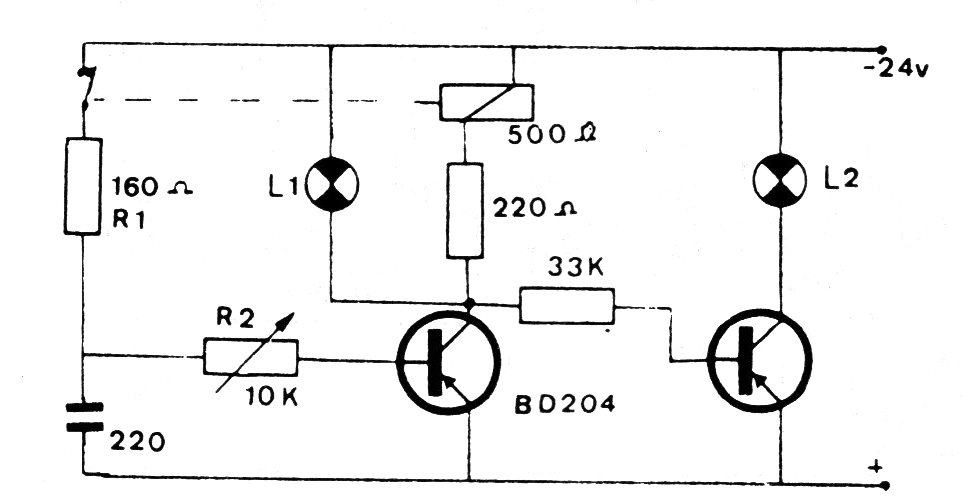

When S1 is closed, the L1 lamp turns on and the L2 lamp turns off. The circuit is powered according to the voltage of the relay and lamps. The delay is given by the resistor R1 and the 220 uF capacitor that can be changed over a wide range of values.
