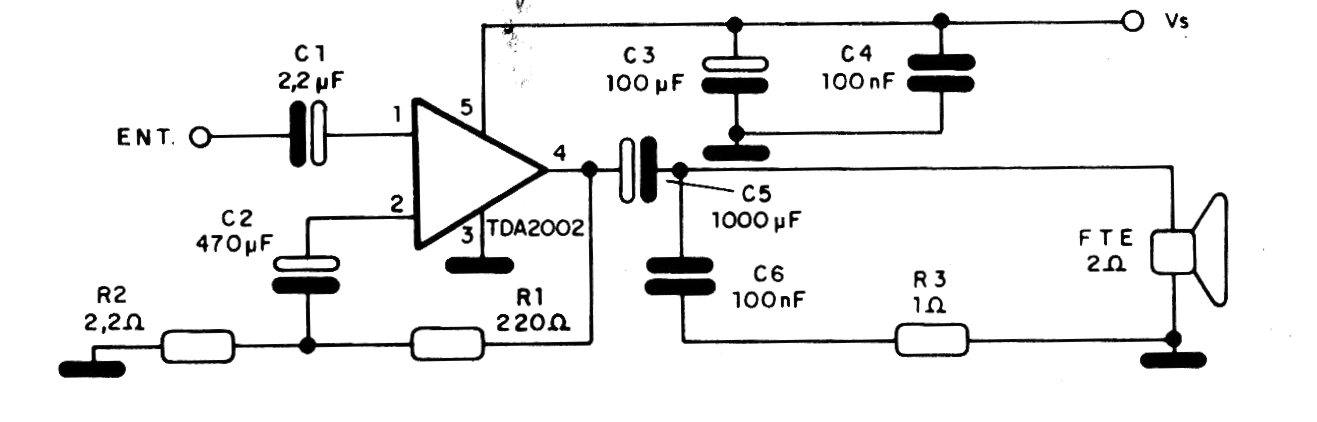

With a 12 V supply and a 2 ohms load, this circuit can provide a power of the order of 8 W. The integrated circuit must be mounted on a heat sink. The source must provide at least 3 A.
| Clique na imagem para ampliar |
8W Amplifier with the TDA2002 (CB15824E)
- Details
- Written by: Newton C. Braga
