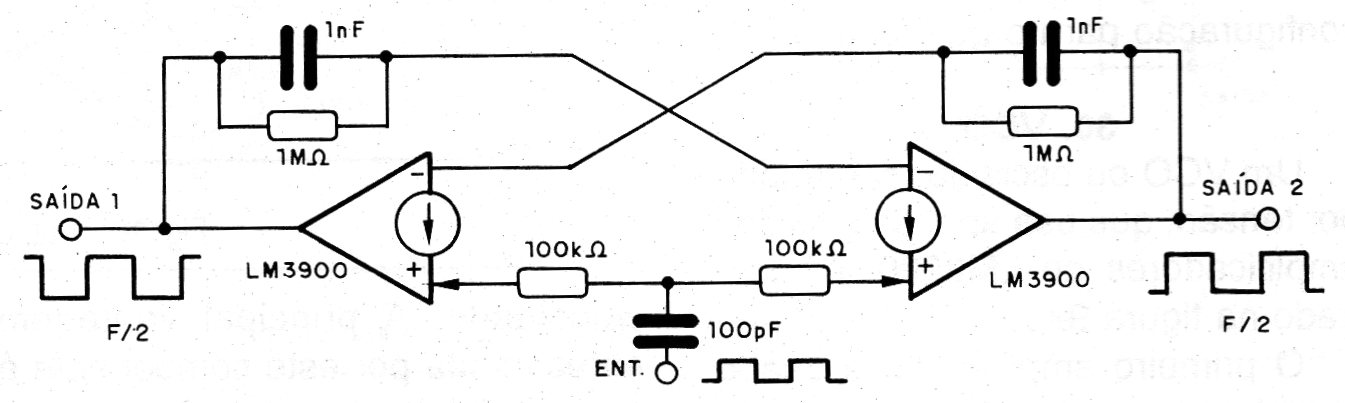

This flip-flop circuit, which can also be used on a low-frequency splitter, uses two amplifiers. As we can see from the figure, it has two outputs, one normal and one complementary, which does not happen with the previous circuit (CB15616E).
| Clique na imagem para ampliar |
