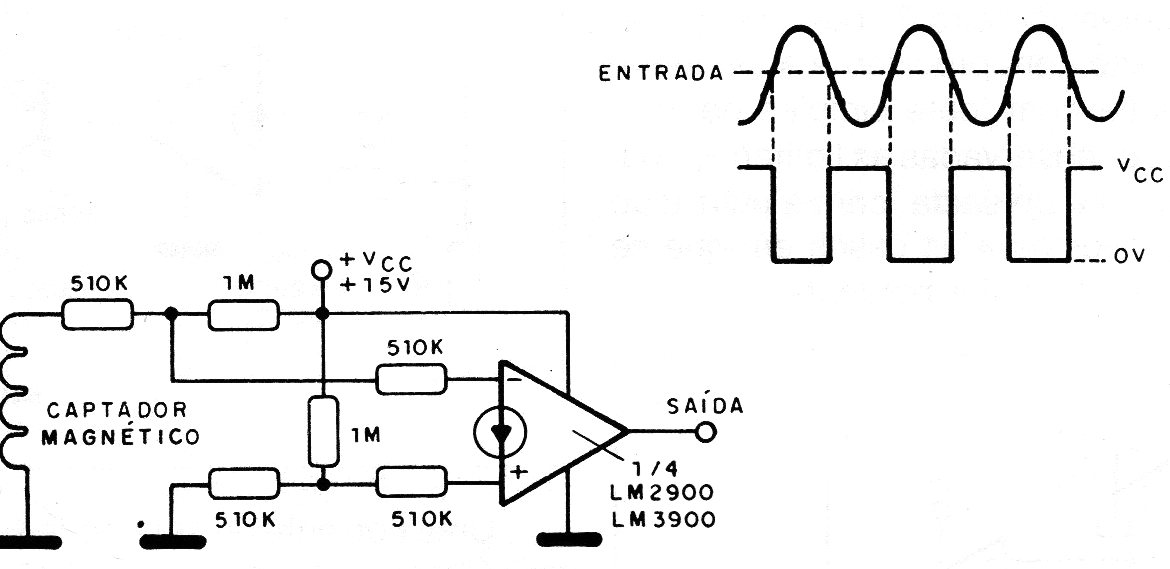

This circuit consists of a “zero crossing detector” that provides a rectangular output signal whose transitions coincide with the zero crossing of an input sinusoidal signal. This circuit is ideal for use in power controls with SCRs and triacs, controlling loads at from signals obtained from a magnetic transducer. Speed controls for AC motors can be implemented based on this circuit.
