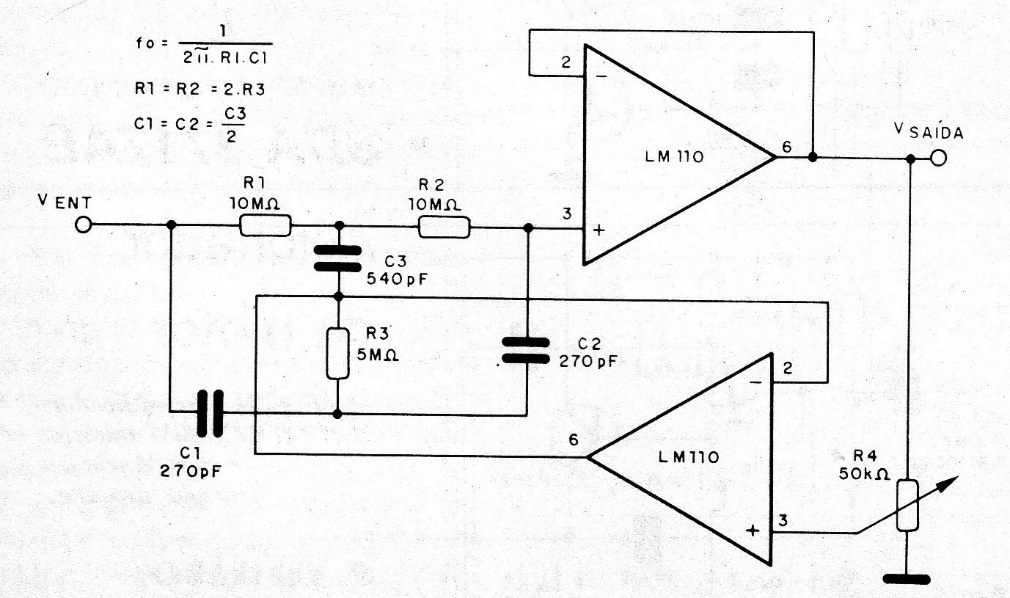

We can implement this filter with more modern equivalent operational amplifiers, since the LM110 is uncommon today. The formulas next to the diagram allow to design the circuit for specific frequencies. The circuit requires a symmetrical source and was suggested by National Semiconductor.
