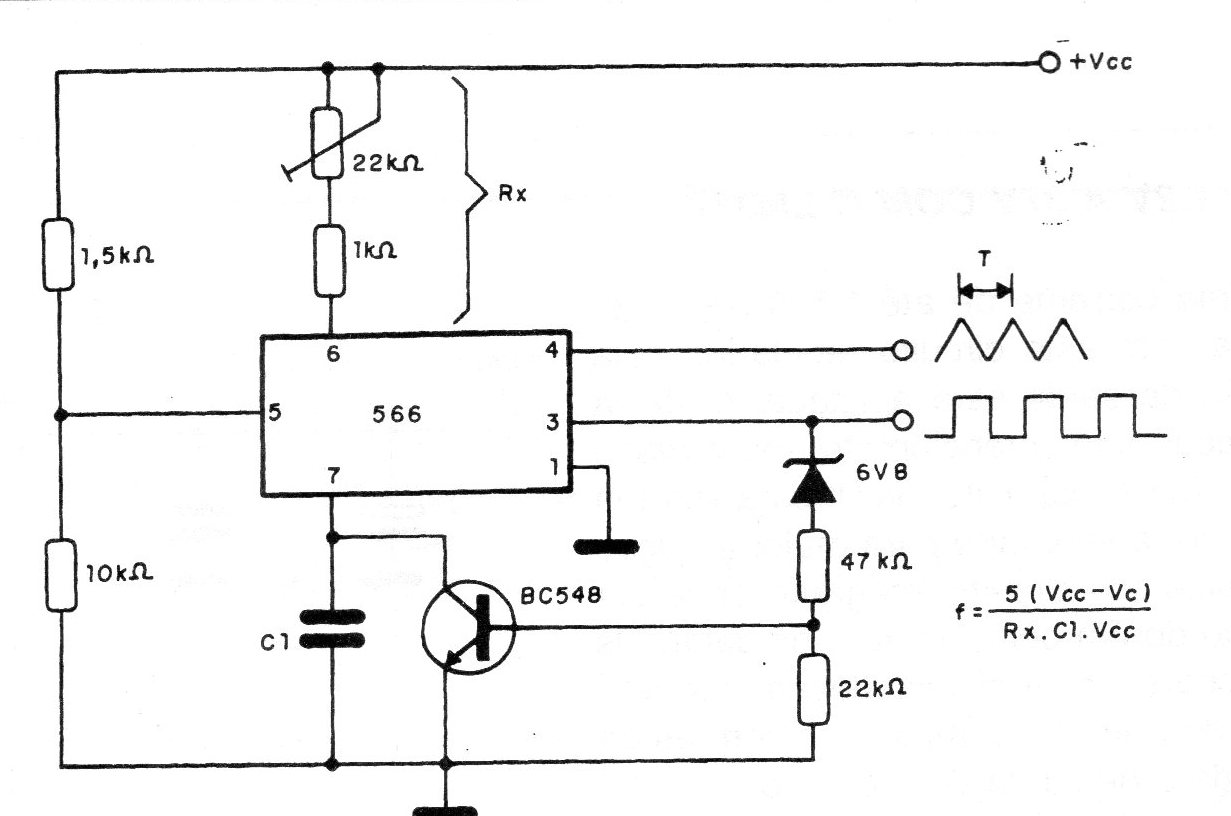

This circuit is based on a PLL 566 and generates positive ramps. The frequency depends on Rx and C and is given by the formula next to the diagram, where Vc is the voltage at pin 1. The supply voltage must be greater than that of the used zener.
