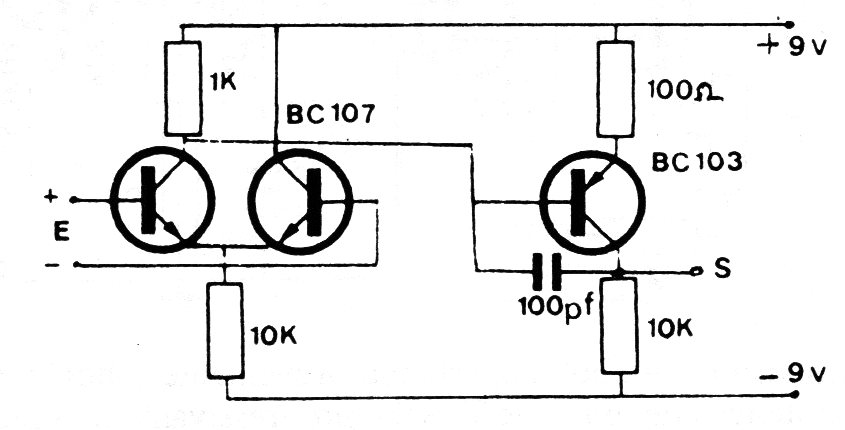

In the figure we have the way to implement an operational amplifier using common transistors such as BC547 and BC557 (instead of the original ones). The circuit is powered by a symmetrical source and has a gain between 500 and 1,000 times and an output impedance of around 10k.
