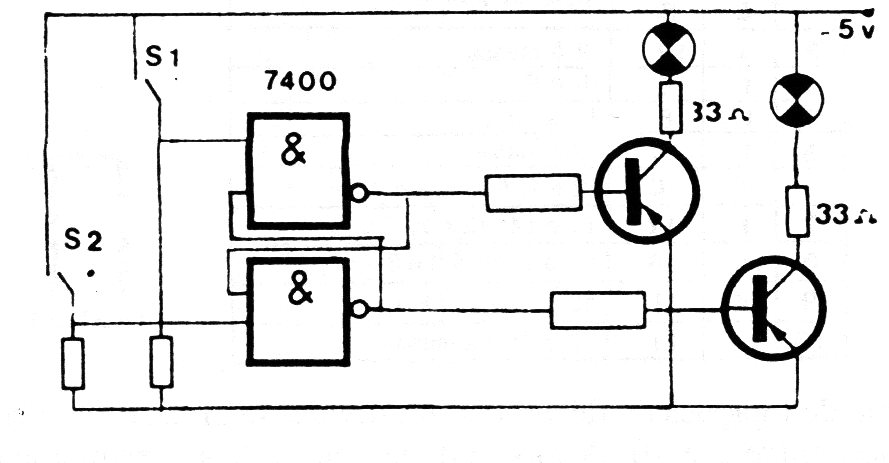

This circuit was suggested by old French documentation, but it can be used as a shield, in which case the output signals from a microcontroller will be used instead of S1 and S2. LEDs or other loads can also be used in place of the lamps and the BC548 transistors can be used. The circuit can also be used as an input shield, in which case S1 and S2 will be sensors.
